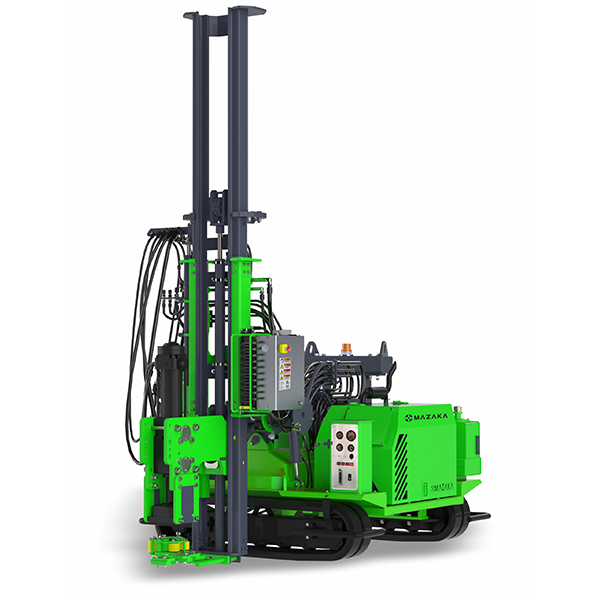

Mazaka MW600 Guardrail Pile Driver

Ground Screw Guardrail Machine

With our MW600 Series machines, you can easily drive barrier piles for highway safety, wooden piles for farms and photovoltaic installation piles with a lifting height of 3700 mm.

You can also screw the ground by adding a hydromotor.

Get The Brochure Attachments Contact

Features

Engine

Yanmar

Hammer Height

3700 mm

Track Type

Rubber

Weight

2950 Kg

Pile Driver Pile Driver Machine Pile Drivers for Safety Barrier Installations Road Safety Barriers Guardrail Pile Drivers Guardrail Pile Driver Machine Pile Driver Price Pile Driver Manufacturer Pile Driver Machine For Sale The Compact Pile Guardrail Driver

Gallery
Technical Detail
Video
Files

Görüntüle

ENGINE
Make	YANMAR

Cylinders	4

Gross Power hp	35.5 kW
Rated Speed rpm	3.000
Certfica	Stage 5
Fuel Tank	50 l
DPF Filter	yes

HAMMER
Oil Pressure Range	120 bar
Joule	900 Nm
Oil Flow Range	65 flow
Hammer Weight

HYDRAULIC SYSTEM
Oil Flow Rate	75 l
Oil Pressure	180 bar
Oil Tank	120 l

MACHINE TRAVEL SPEED
Low Speed	2 km/h
High Speed	-----
Gradeability	30°
Side Walk	10°

DIMENSION
Machine Lenght	1670 mm
Transport Width	2065 mm
Transport Height	2340 mm
Transport Lenght	1670 mm
Weight	2950 kg
Angle of mast forward	10°
Angle of mast backward	63°

OPTIONAL
Engine Stage 3-5 Yanmar
Laser Height Management System
Auto Mast Leveling
GPS Macihnery Control System
Hammer 1060 J
Mast 4500 mm
Down The Hole 4"
Auger 8000 Nm
Remote Control
Post Exctractor
